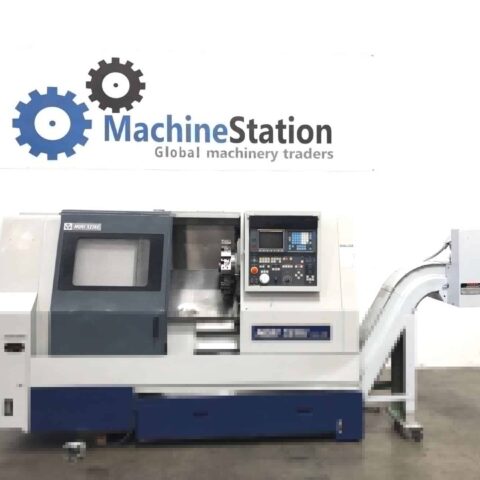

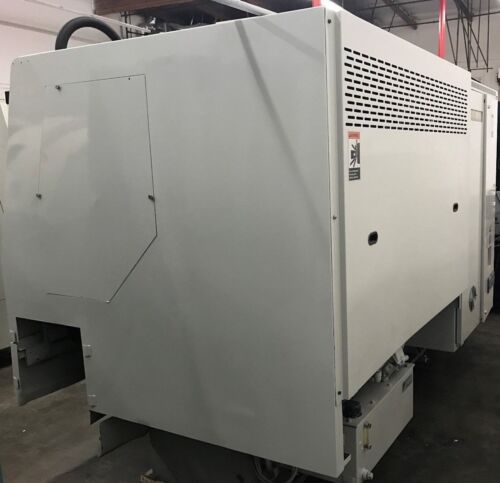

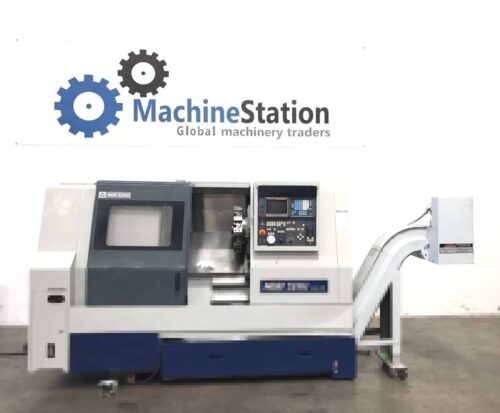

Mori Seiki SL-25B/500 CNC Turning Center
Out of stock
| SKU: |
1389 |
| Make/Model: |
Mori Seiki SL-25B/500 |
| MORI SEIKI SL-25B/500 CNC TURNING CENTER LATHE |
| Make |
Mori Seiki |
| Model No. |
SL-25B/500 |
| Year |
2008 |
| Serial # |
3785 |
| Condition |
Very Good |
| Country of Origin: |
Japan |
- MORI SEIKI SL-25B Equipped With:
- 12-Station Turret
- Box Ways Design
- MF-T4 (Fanuc 0T) CNC Control
- 10″ 3-Jaw Hydraulic Chuck
- 2 Step gear spindle for powerful torque
- Hydraulic Programmable Tailstock
- Turbo Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Coolant Tank
- Comes with Books, Chip Conveyor, Tool Holders, and Parameters Backup.
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 32kva
- Overall Dimensions: 110″ x 68″ x 80″ High
- Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
- Weight : 13000 lbs Approx.
- MORI SEIKI SL-25B Specifications:
- Max Turning Diameter: 13.4″
- Max Turning Length: 20.9″
- Max Bar Capacity: 2.65″
- Swing Over Cross Slide: 13.8″
- Swing Over Bed: 20.5″
- Distance Between Centers: 24.6″
- X Axis Travel: 11.3″
- Z Axis Travel: 43.33″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 3.1″
- Spindle Speed: 35 – 3500 RPM
- Spindle Motor: 20 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-4
Inquiry for Mori Seiki SL-25B/500 CNC Turning Center
