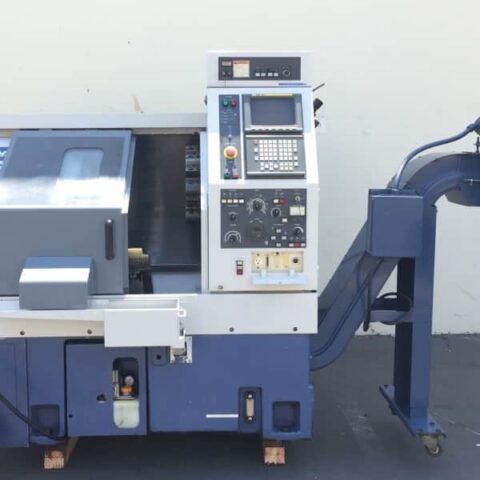

MORI SEIKI CL20 A CNC TURNING CENTER
Out of stock
| SKU: |
1265 |
| Make/Model: |
Mori Seiki CL 20A |
| MORI SEIKI CL20 A CNC TURNING CENTER W/ FANUC |
| Make |
Mori Seiki |
| Model No. |
CL 20A |
| Year of Manufacture: |
1994 |
| Serial # |
1077 |
| Condition |
Very Good |
| Comes with All Original Manuals |
|
- MORI SEIKI CL20 A Features:

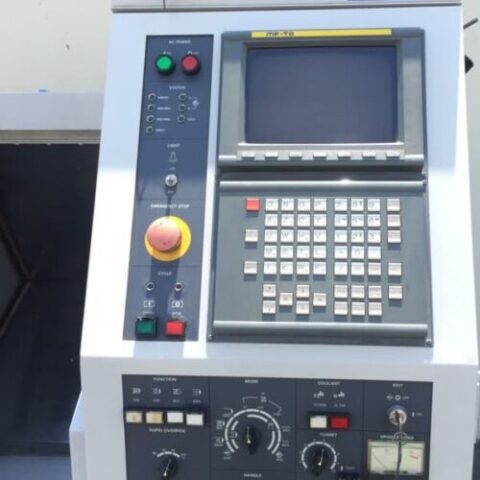

- MF-T8 (Fanuc 18T) CNC Control
- Kitagawa 8″ B-208 Hydraulic Chuck
- Tool Pre-setter
- Coolant System
- Spindle Orientation
- Barfeed Interface
- Parts Catcher
- RS-232 ports
- 10 Station Automatic Turret
- Chip Conveyor
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 111″ x 63″ x 68″ High
- Overall Dimensions: 73″ x 63″ x 68″ High (w/o Chip Conveyor)
- Weight: 5700 lbs
- MORI SEIKI CL20 A Specifications:
- Capacity:
- Max Turning Diameter: 12.2″
- Max Turning Length: 13.3″
- Max Bar Capacity: 2.0″
- Swing Over Cross Slide: 14.9″
- Swing Over Bed: 18.5″
- X Axis Travel: 7.5″
- Z AXis Travel: 14.60″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 40 – 4,000 RPM
- Spindle Motor: 7.5kw
- Turret Capacity: 10 Stations
- Turret Index Time: 0.6 Second
Inquiry for MORI SEIKI CL20 A CNC TURNING CENTER
