Mazak Quick Turn Nexus QTN-450II CNC Turning Center - MachineStation
  • MAZAK QUICK TURN NEXUS QTN-450II CNC TURNING CENTER 82' LONG BED 18' CHUCK LATHE(1)

Mazak Quick Turn Nexus QTN-450II CNC Turning Center

$117,000.00

Qty =

Product Description

MAZAK QUICK TURN NEXUS QTN-450II CNC TURNING CENTER 82″ LONG BED 18″ CHUCK LATHE
SKU 2324
Make MAZAK
Model No. QTN-450 II
Serial # 186501
Year 08/2006
Country of Origin: Japan
Cutting Hours 4920<
Condition Very Good
  • Features:
  • Mazatrol Matrix Nexus Control

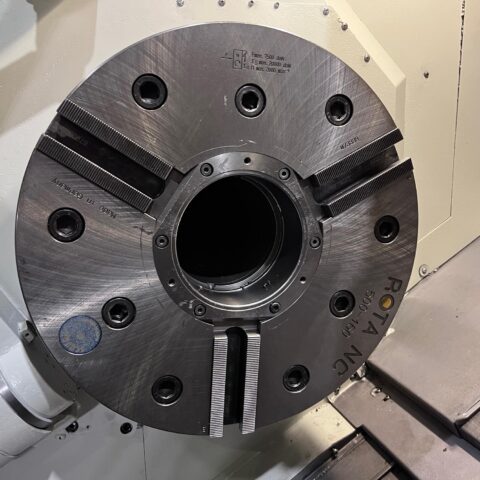

  • Rota 18″ 3-Jaw Hydraulic Chuck
  • 6.5″ Spindle Bore
  • 82″ Long Bed Box Way Construction
  • 2 Step Gear Spindle for Powerful Torque
  • Programmable SMW Autoblok Hydraulic Steady Rest
  • Hydraulic Tailstock with Power Quill

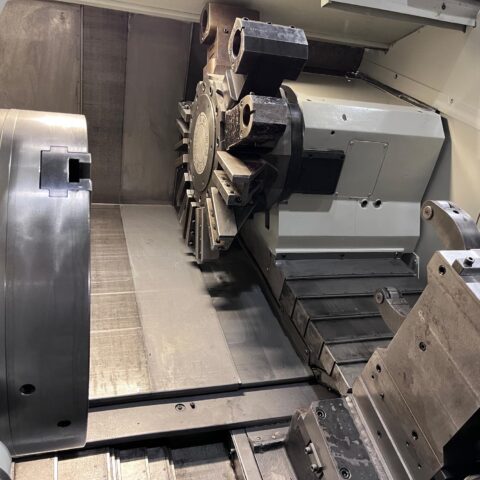

  • 12 Station Turret with Tooling
  • PCMCIA Card Slot
  • USB Ports
  • Coolant System
  • Tool Presetter
  • Automatic Lubrication System
  • Foot Operated Control for Chuck
  • Chip Conveyor
  • Books, Manuals
  • Specifications:
  • Capacity:
  • Max Turning Diameter: 23″
  • Max Turning Length: 80″
  • Max Bar Capacity: 6″
  • Swing Over Bed: 33.27″
  • Distance Between Centers: 84″
  • Travels:
  • X Axis Travel: 12.13’″
  • Z Axis Travel: 83.60″
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 940 IPM
  • Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.5 Second
  • Spindle:
  • Spindle Nose: A2-15
  • Spindle Bore: 6.5″
  • Spindle Speed: 0-2000 RPM
  • Spindle Motor: 50 HP
  • Tailstock:
  • Tailstock Body Travel: 80″
  • Tailstock Quill Dia.: 3.34″
  • Tailstock Quill Stroke: 4.72″
  • Tailstock Taper: MT-5
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 45 kva
  • Overall Dimensions: 204″ x 90″ x 83″ High
  • Weight : 25500 lbs Approx.
